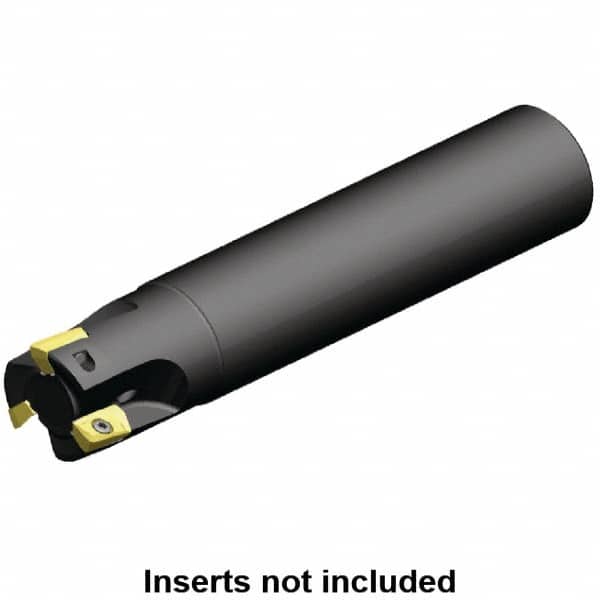

Kennametal - 12mm Cut Diam, 10.3mm Max Depth of Cut, 16mm Shank Diam, 90mm OAL, Indexable Square Shoulder End Mill - EC10.., EP10.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant
Item #: 77460483
Brand: Kennametal
Model #: 3744538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 90.00 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.4058 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 1 |
| Head Length (mm) | 20.00 |
| Weldon Flat | No |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 57800 |
