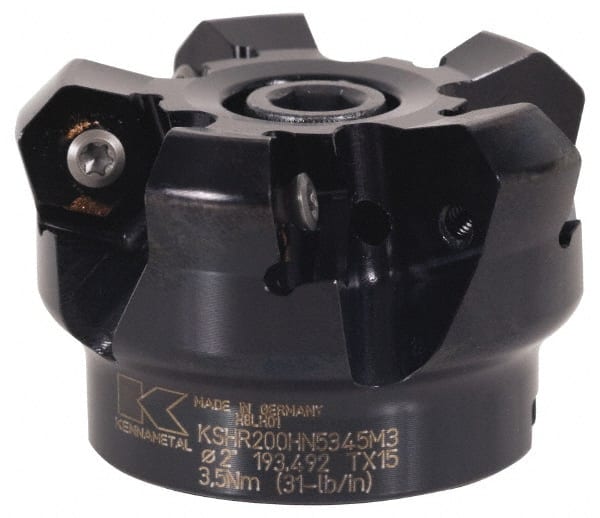

Kennametal - 50mm Cut Diam, 22mm Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, HNGJ 0905 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Mill 1-18
Item #: 77461853
Brand: Kennametal
Model #: 3324832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | HNGJ 0905 |
| Series | Mill 1-18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Hub Diameter (mm) | 38.00 |
| Maximum RPM | 12700 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
| Complete Insert Compatibility | HNGJ 0905ANENLD; HNGJ 0905ANSNGD |
