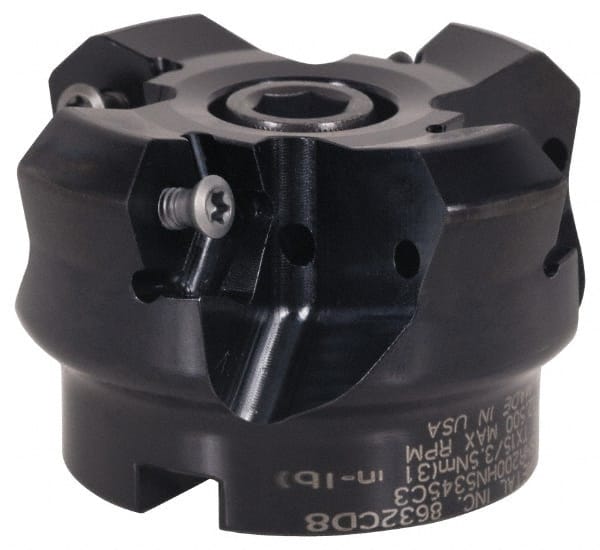

Kennametal - 4" Cut Diam, 1" Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, HNGJ 535ANENLD Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series KSHR
Item #: 77462000
Brand: Kennametal
Model #: 3747126
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HNGJ 535ANENLD |
| Series | KSHR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 2.7220 |
| Maximum Body Diameter (Decimal Inch) | 4.2320 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Pitch | Extra Coarse |
