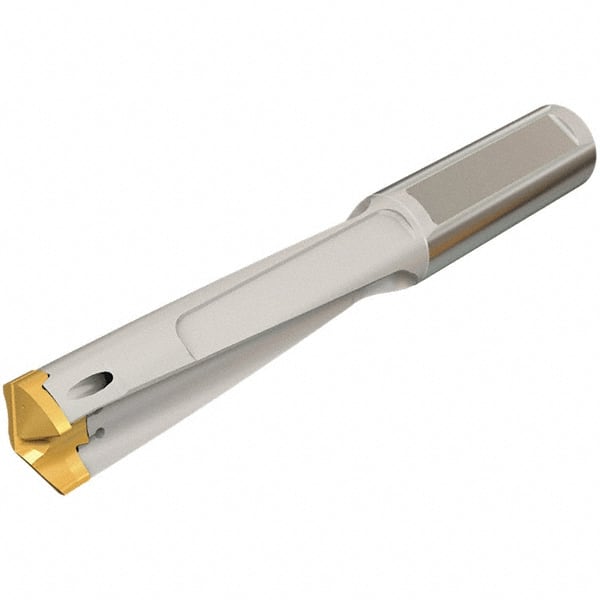

Iscar - 13 to 13.4mm Diam, 3.5xD, 42mm Max Depth, 13mm Shank Diam, 99.5mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 13 Seat Size, DCM Toolholder, Series UniChamDrill
Item #: 77559847
Brand: Iscar
Model #: 3200979
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (mm) | 13.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.5276 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 42.00 |
| Shank Diameter (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.5120 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 13 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 54.50 |
| Body Length (Decimal Inch) | 2.1457 |
| Overall Length (mm) | 99.50 |
| Overall Length (Decimal Inch) | 3.9173 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
