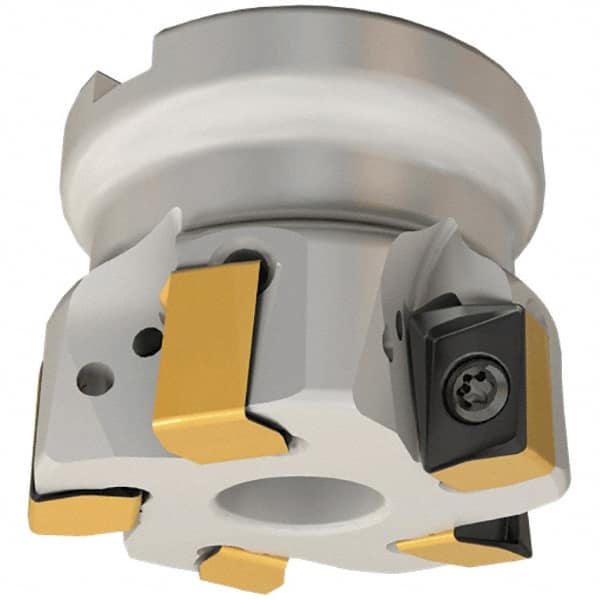

Iscar - 9 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.472" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, H490 AN.X 12 Insert Compatibility, Through Coolant, Series Helido
Item #: 77577641
Brand: Iscar
Model #: 3135441
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | H490 AN.X 12 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | H490 F90AX-12 |
| Number of Flutes | 9 |
| Cutting Edge Length (Decimal Inch) | 0.4720 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | H490 ANKX/ANCX 1205-FF; H490 ANKX/ANCX-12 |
