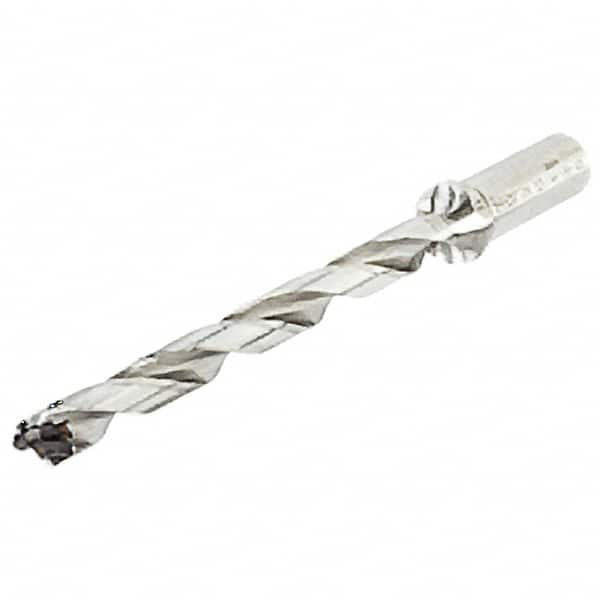

Iscar - 12mm to 12.41mm Diam, 12xD, 144mm Max Depth, 16mm Shank Diam, 209.16mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 77589489 Toolholder, Series SumoCham
Item #: 77589489
Brand: Iscar
Model #: 3202753
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 12.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.4728 |
| Maximum Drill Diameter (mm) | 12.41 |
| Maximum Drill Diameter (Decimal Inch) | 0.4886 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 5.6736 |
| Maximum Drill Depth (mm) | 144.11 |
| Shank Diameter (mm) | 16.01 |
| Shank Diameter (Decimal Inch) | 0.6304 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 161.12 |
| Body Length (Decimal Inch) | 6.3434 |
| Overall Length (mm) | 209.16 |
| Overall Length (Decimal Inch) | 8.2346 |
| Shank Length (mm) | 48.04 |
| Shank Length (Decimal Inch) | 1.8912 |
