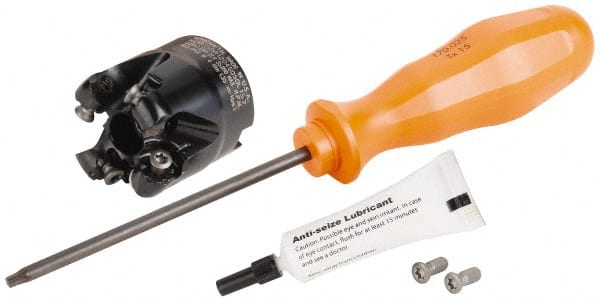

Kennametal - 40mm Cut Diam, 2.97mm Max Depth, 16mm Arbor Hole, 4 Inserts, RN.J 1204... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 35,020 Max RPM, 40mm High, Through Coolant, Series Rodeka
Item #: 77610194
Brand: Kennametal
Model #: 4147039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 2.97 |
| Maximum Depth of Cut (Decimal Inch) | 0.1170 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | Rodeka |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RN.J 1204... |
| Cutter Style | KDR |
| Through Coolant | Yes |
| Maximum RPM | 35020 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Complete Insert Compatibility | RN.J 1204M0.. |
