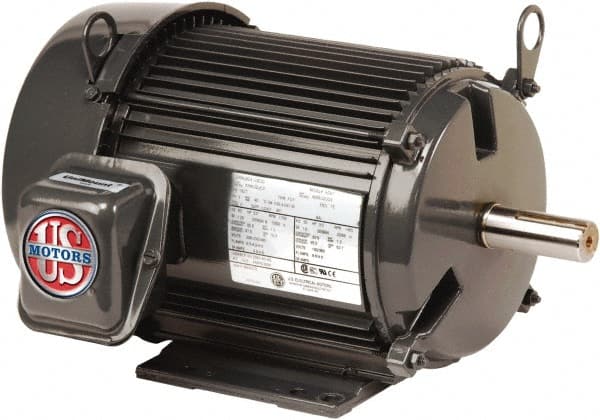

3 hp, TEFC Enclosure, No Thermal Protection, 3540, 2920 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 182 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 8.4-7.8/3.9 Full Load Amps, F Class Ins
Item #: 77653095
Brand: US Motors
Model #: U3P1D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Motor Design | 3-Phase |
| Horsepower | 3 hp; 3; 3 hp old; 3 W; 3 h |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 3 hp; 3 hp old; 3 W; 3 h |
| Name Plate RPMs | 3540, 2920 |
| Voltage | 208-230/460 & 190/380 |
| Nameplate Rpm | 3540 RPM |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 182 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Number Of Phases | 1 |
| Application | General Equipment |
| Full Load Amperage | 8.4-7.8/3.9 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| Motor Rotation | Dual |
| Phase | 3 |
| PSC Code | 6105 |
