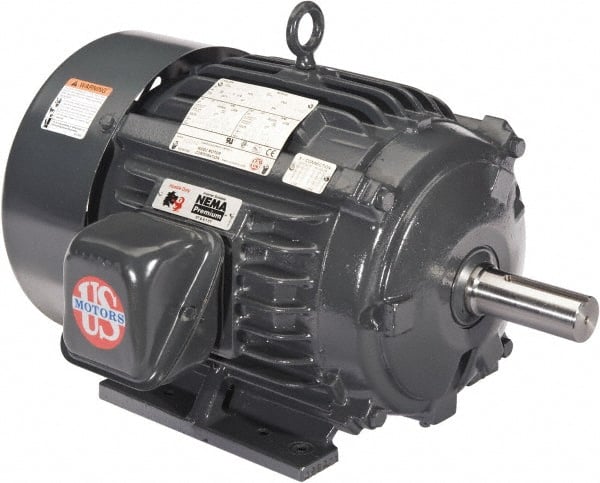

30 hp, TEFC Enclosure, No Thermal Protection, 1185, 975 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 326 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 74/37 Full Load Amps, F Class Insulatio
Item #: 77653194
Brand: US Motors
Model #: H30P3E
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 30 h; 30 W; 30 hp old; 30; 30 hp |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 30 h; 30 W; 30 hp old; 30 hp |
| Name Plate RPMs | 1185, 975 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 326 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment; Harsh Environment |
| Full Load Amperage | 74/37 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment; Harsh Environment |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
