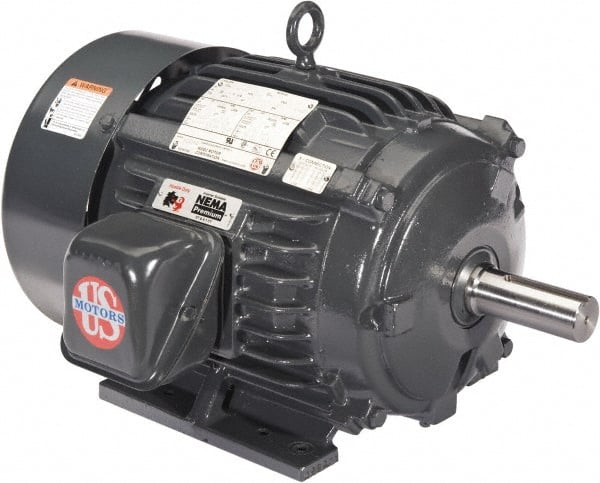

US Motors - 25 hp, TEFC Enclosure, No Thermal Protection, 1185, 975 RPM, 230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor
Item #: 77653244
Brand: US Motors
Model #: H25P3E
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 25 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1185, 975 |
| Voltage | 230/460 & 190/380 |
| Frequency Hz | 60/50 |
| Frame Size | 324 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Applications | General Equipment; Harsh Environment |
| Full Load Amperage | 62/31 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
