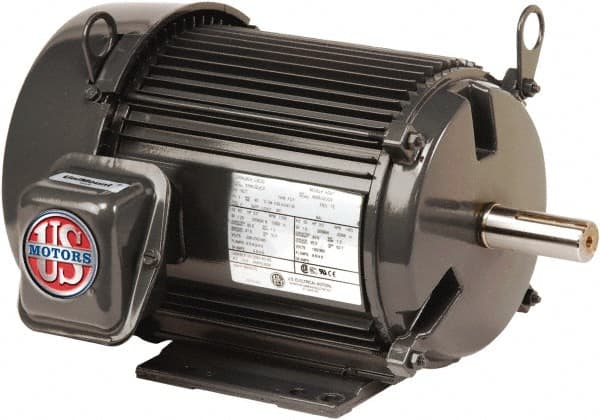

US Motors - 1 hp, TEFC Enclosure, No Thermal Protection, 1740, 1415 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor - Size 56 Frame, C-Face Mount, 1 Speed, Sealed Ball Bearings, 3.1-3.0/1.5 Full Load Amps, F Class Insulation
Item #: 77653327
Brand: US Motors
Model #: U1P2DFCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1740, 1415 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 |
| Frame Size | 56 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Sealed Ball |
| Applications | General Equipment |
| Full Load Amperage | 3.1-3.0/1.5 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
