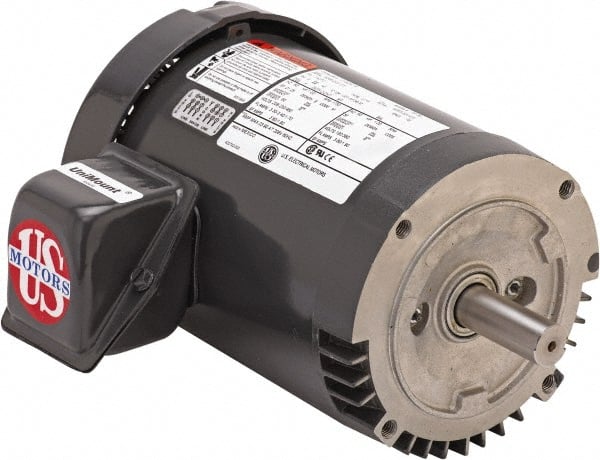

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 1725, 1425 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 56 Frame, C-Face Mount, 1 Speed, Sealed Ball Bearings, 4.5-4.5/2.2 Full Load Amps, F Class Insulation
Item #: 77653426
Brand: US Motors
Model #: T32E2ACR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725, 1425 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Sealed Ball |
| Applications | General Equipment |
| Full Load Amperage | 4.5-4.5/2.2 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
