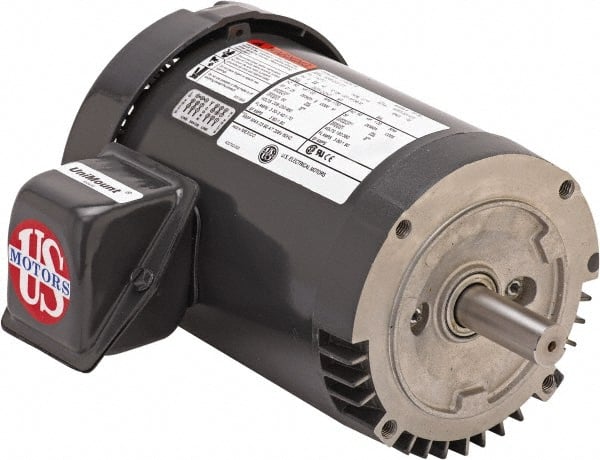

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 1,765 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 182 Frame, C-Face Mount, 1 Speed, Double Shielded Ball Bearings, 8.4-7.8/3.9 Full Load Amps, F Class Insulation
Item #: 77653533
Brand: US Motors
Model #: S3P2ACR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1765 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Applications | General Equipment |
| Full Load Amperage | 8.4-7.8/3.9 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
