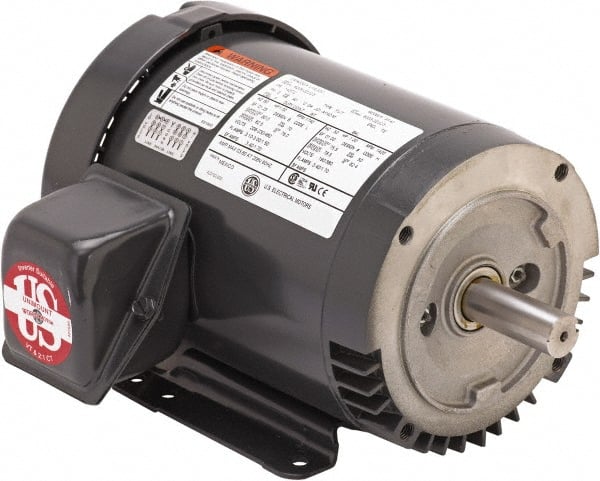

US Motors - 10 hp, TEFC Enclosure, No Thermal Protection, 1,760 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor
Item #: 77653558
Brand: US Motors
Model #: S10P2AC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 10 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1760 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 215 |
| Mount Type | C-Face w/Base |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Applications | General Equipment |
| Full Load Amperage | 26.6-23.8/11.9 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
