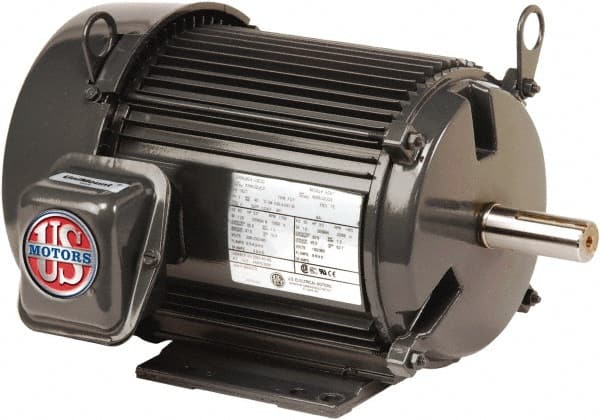

7-1/2 hp, TEFC Enclosure, No Thermal Protection, 1765, 1455 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 254 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 20.6-19/9.5 Full Load Amps, F Class
Item #: 77653699
Brand: US Motors
Model #: U7P3DC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 7-1/2 |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Name Plate RPMs | 1765, 1455 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 254 |
| Mount Type | C-Face w/Base |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment |
| Full Load Amperage | 20.6-19/9.5 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
