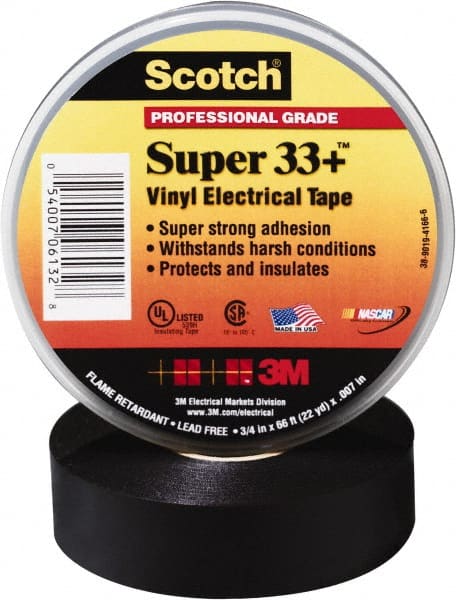

3M - 3/4" x 52', Black Vinyl Electrical Tape - Series 33+, 7 mil Thick, 1,150 V/mil Dielectric Strength, 15 Lb./Inch Tensile Strength
Item #: 77654036
Brand: 3M
Model #: 00054007061335
Exact Tooling IR#: 04
Features and Benefits
Vinyl is a tough, durable plastic film that stretches to conform to irregular surfaces. It is resistant to abrasion, chemicals, solvents and oil.
| Product Specifications | |
|---|---|
| Width (Inch) | 3/4 |
| Length Range | 12 yd. - 35.9 yd. |
| Color | Black |
| Material Type | Vinyl |
| Length (Feet) | 52.00 |
| Length (Inch) | 624 |
| Length (Meters) | 15.85 |
| Length (yd) | 17.33 |
| Thickness (mil) | 7.00 |
| Adhesive Meterial | Rubber |
| Series Part Number | 33+ |
| Tensile Strength (Lb./Inch) | 15.00 |
| Minimum Operating Temperature (C) | -18.00 |
| Minimum Operating Temperature (F) | 0.00 |
| Maximum Operating Temperature (C) | 104.44 |
| Maximum Operating Temperature (F) | 220.00 |
| Applications | Bundling; Insulating; Protecting |
| Dielectric Strength (V/mil) | 1150.00 |
| Standards | A-A-55809; ASTM D-3005 Type 1; CSA Certified; SS 404 09 75; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340 TEIL 3-1 |
| Series | 33+ |
| Width (mm) | 18.00 |
