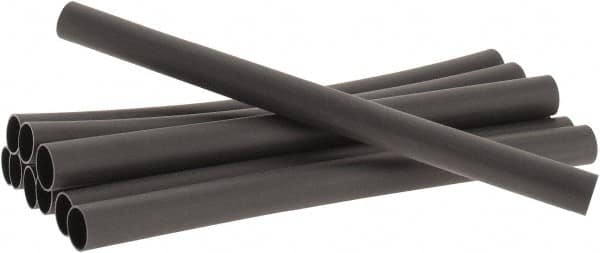

3M - 6" Long, 3:1, Polyolefin Heat Shrink Electrical Tubing - Black
Item #: 77654606
Brand: 3M
Model #: 00051128600702
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Overall Length (Decimal Inch) | 6 |
| Maximum Compatible Wire Size (AWG) | 6 |
| Minimum Compatible Wire Size (AWG) | 16 |
| Color | Black |
| Inside Diameter Before Shrinking (mm) | 9.53 |
| Inside Diameter Before Shrinking (Inch) | 3/8 |
| Inside Diameter Before Shrinking (Decimal Inch) | 3/8 |
| Inside Diameter After Shrinking (Decimal Inch) | 0.1200 |
| Inside Diameter After Shrinking (mm) | 3.05 |
| Shrink Temperature (F) | 249.80 |
| Resistance Features | Corrosion Resistant; Fluid Resistant; Fungus Resistant; Water Resistant |
| Wall Thickness After Shrinking (mm) | 1.40 |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0550 |
| Maximum Operating Temperature (F) | 230 |
| Minimum Operating Temperature (F) | -67 |
| Standards Met | CSA File LR38227; CSA Recognized; RoHS Compliant; UL File E157227; UL Recognized |
