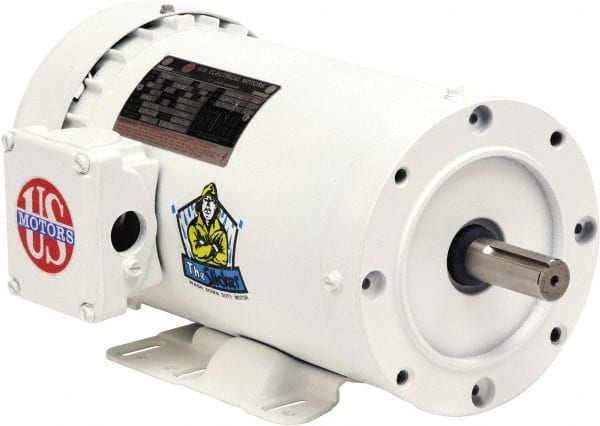

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1755, 1435 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor
Item #: 77655231
Brand: US Motors
Model #: WD5P2D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1755, 1435 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 |
| Frame Size | 184 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Sealed Ball Bearings |
| Applications | Food Processing |
| Full Load Amperage | 13.5-12.5/6.2 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
