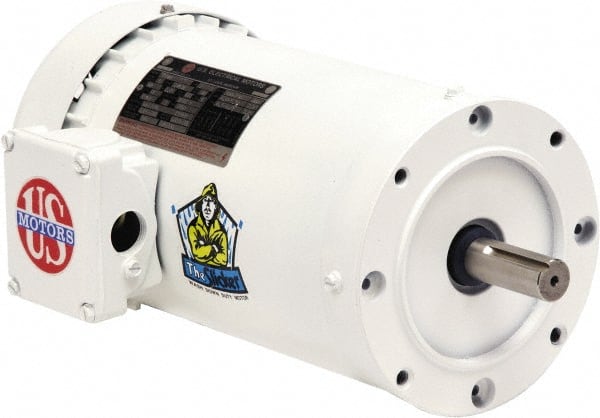

US Motors - 1 hp, TEFC Enclosure, No Thermal Protection, 1,725 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 143 Frame, C-Face Mount, 1 Speed, Double Sealed Ball Bearings, 3.4-3.3/1.7 Full Load Amps, F Class Insulation
Item #: 77655272
Brand: US Motors
Model #: WD1E2A14CR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 143 |
| Mount Type | C-Face Mount |
| Number of Speeds | 1 |
| Bearing Type | Double Sealed Ball Bearings |
| Applications | Food Processing |
| Full Load Amperage | 3.4-3.3/1.7 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
