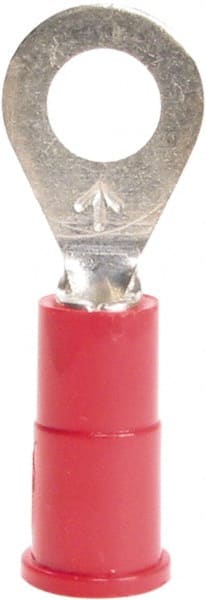

3M - 22-18 AWG Partially Insulated Crimp Connection Circular Ring Terminal - #10 Stud, 0.93" OAL x 0.31" Wide, Copper Contact
Item #: 77675494
Brand: 3M
Model #: 00054007947172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Circular |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 22-18 |
| Stud Size (#) | 10 |
| Color | Red |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0300 |
| Insulation Material | VINYL |
| Ring Width (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 0.9300 |
| Standards Met | CSA Certified; CSA LR22190; RoHS 2011/65/EU Compliant; UL File E23438; UL Listed |
