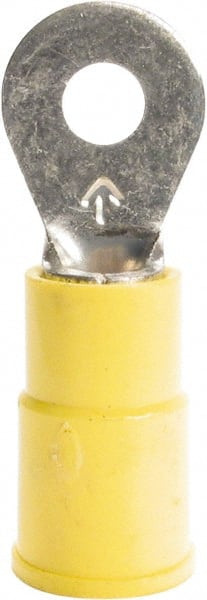

3M - 12-10 AWG Partially Insulated Crimp Connection Circular Ring Terminal - #8 Stud, 1.03" OAL x 0.38" Wide, Copper Contact
Item #: 77675510
Brand: 3M
Model #: 00054007947530
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Circular |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (#) | 8 |
| Color | Yellow |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0400 |
| Insulation Material | VINYL |
| Ring Width (Decimal Inch) | 0.3800 |
| Overall Length (Decimal Inch) | 1.0300 |
| Standards Met | CSA Certified; CSA LR22190; RoHS 2011/65/EU Compliant; UL File E23438; UL Listed |
