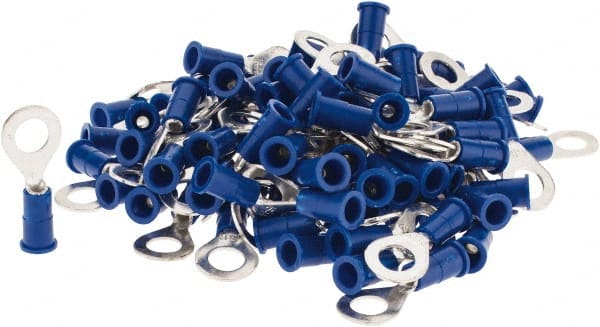

3M - 16-14 AWG Partially Insulated Crimp Connection Circular Ring Terminal - 1/4" Stud, 1.08" OAL x 0.47" Wide, Copper Contact
Item #: 77675585
Brand: 3M
Model #: 00054007947318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Circular |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 16-14 |
| Stud Size (Inch) | 1/4 |
| Color | Blue |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0300 |
| Insulation Material | VINYL |
| Ring Width (Decimal Inch) | 0.4700 |
| Overall Length (Decimal Inch) | 1.0800 |
| Standards Met | CSA Certified; CSA LR22190; RoHS 2011/65/EU Compliant; UL File E23438; UL Listed |
