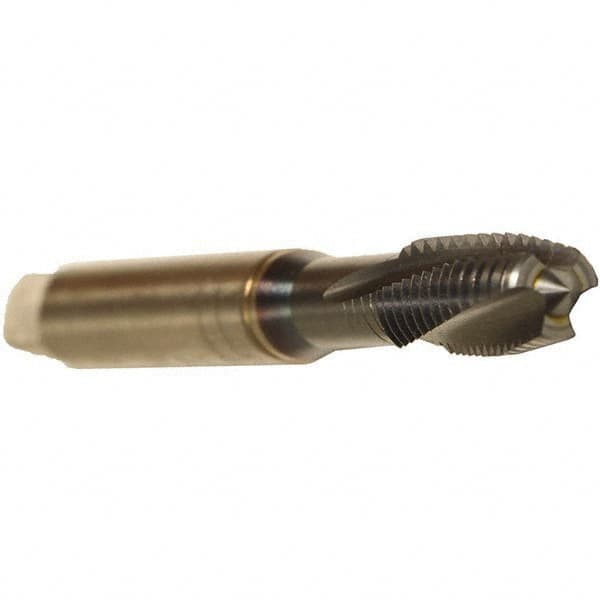

Emuge - M8x1.25 Metric Coarse, 3 Flute, TiCN Finish, Cobalt Spiral Point Tap - Plug Chamfer, Right Hand Thread, 90mm OAL, 20mm Thread Length, 8mm Shank Diam, 6HX Class of Fit
Item #: 77745438
Brand: Emuge
Model #: B0309601.0080
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.25 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Finish/Coating | TiCN |
| Material | Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Thread Standard | Metric Coarse |
| Thread Length (mm) | 20.00 |
| Tapping Depth (mm) | 35.00 |
| Shank Diameter (mm) | 8.00 |
| Square Size (mm) | 6.20 |
| Material Application | Titanium |
