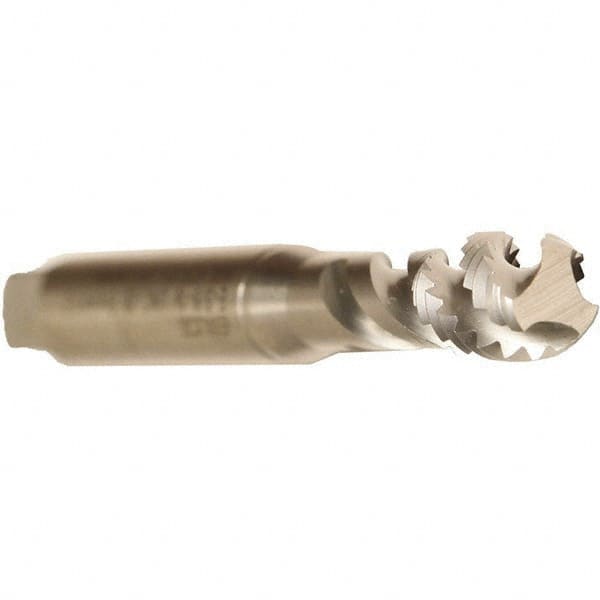

Emuge - M6x1.00 Metric Coarse 3 Flute 6H Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 80mm OAL, Right Hand Flute, Right Hand Thread
Item #: 77745594
Brand: Emuge
Model #: B0513500.0060
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Chamfer | Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 80.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (mm) | 10.00 |
| Flute Type | Fast Spiral |
| Tapping Depth (mm) | 30.00 |
| Shank Diameter (mm) | 6.00 |
| Material Application | Acid Resistant Steel; Aluminum Alloys; Free Cutting Steel; Heat Treated Steel; Heat-Treated Materials; High Alloy Steel Castings; Nickel; Nickel Alloys; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloys; Tool Steel |
