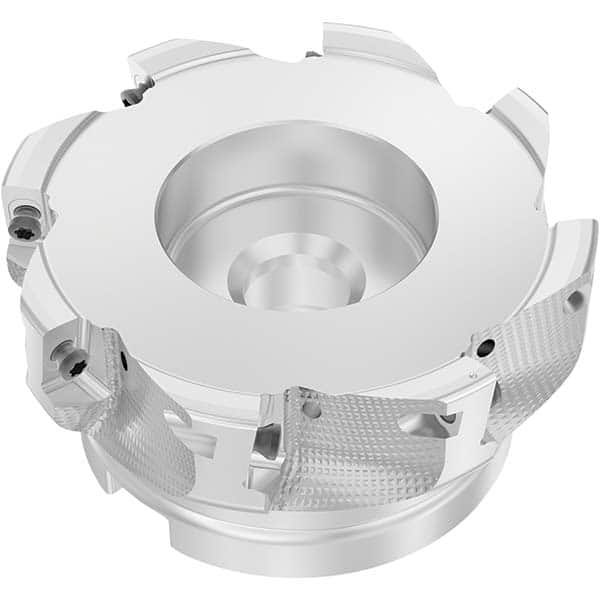

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 84.00 Cutting Diameter (Inch): 3.307
Item #: 18140269
Brand: Seco
Model #: 03336120
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 84.00 ; Cutting Diameter (Inch): 3.307 ; Arbor Hole Diameter (mm): 27.00 ; Lead Angle: 90 ; Overall Height (mm): 50.00000 ; Insert Compatibility: XOMX; XOEX
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Inch) | 3.307 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00000 |
| Insert Compatibility | XOMX; XOEX |
| Series | R220.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | R220.69 |
| Number of Flutes | 8 |
| Rake | Positive |
| Hub Diameter (mm) | 62.000 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 9100.000 |
| Toolholder Material | Steel |
