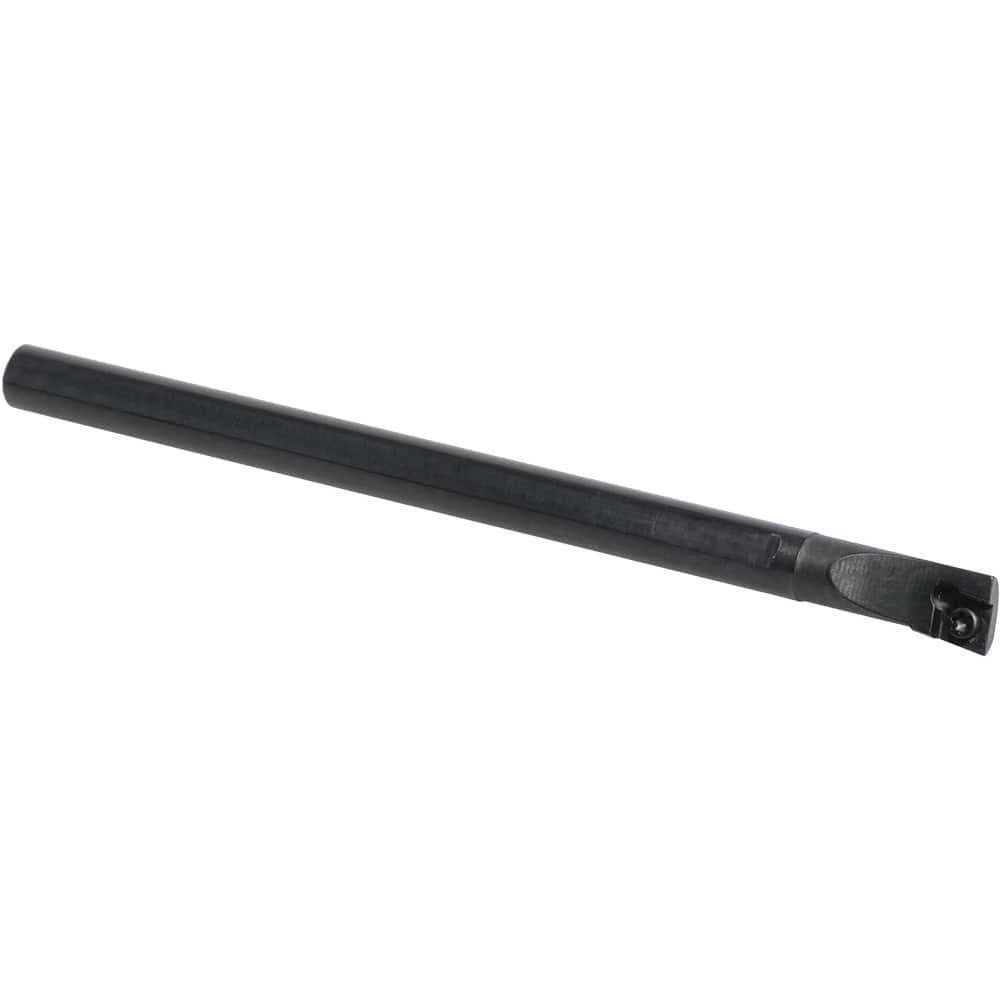

10mm Min Bore, 5/8″ Max Depth, Left Hand S...SCLC Indexable Boring Bar 127mm OAL, 7.92mm Shank Diam, 95° Lead Angle, Uses CCGT215 ™, CCMT215 ™, CCET215 ™, CCGW215 ™, CCMW215 ™, S...SCLC Inserts
Item #: 77836971
Brand: Kyocera
Model #: THC89264
Product Specifications
| Minimum Bore Diameter (mm) | 10.00 |
| Maximum Bore Depth (Inch) | 5/8 |
| Toolholder Style | S...SCLC |
| Tool Material | Steel |
| Insert Compatibility | CCGT215?; CCGW215?; CCET215?; CCMT215?; CCMW215? |
| Shank Diameter (mm) | 7.92 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 127.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 5.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Inch) | 3/32 |
| Manufacturers Catalog Number | S05KSCLCL2 |
| Radial Rake | -12 |
| Coolant Through | No |
