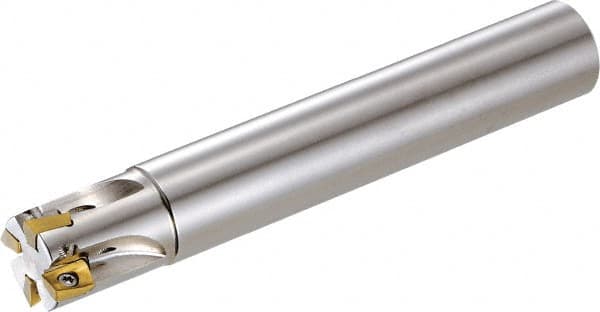

Kyocera - 1-1/4" Cut Diam, 6mm Max Depth of Cut, 1-1/4" Shank Diam, 5" OAL, Indexable Square Shoulder End Mill - BDMT0703... Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series MECX
Item #: 77855872
Brand: Kyocera
Model #: 8821885
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length/Projection (Inch) | 5 |
| Lead Angle | 90 |
| Series | MECX |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp, Screw |
| End Mill Type | End Mill |
| Cutter Style | MECX |
| Number of Flutes | 8 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Head Length (mm) | 60.00 |
| Weldon Flat | No |
| Insert Compatibility | BDMT0703... |
| Shank Length (mm) | 97.00 |
| Maximum RPM | 33700 |
| Toolholder Material | Steel |
