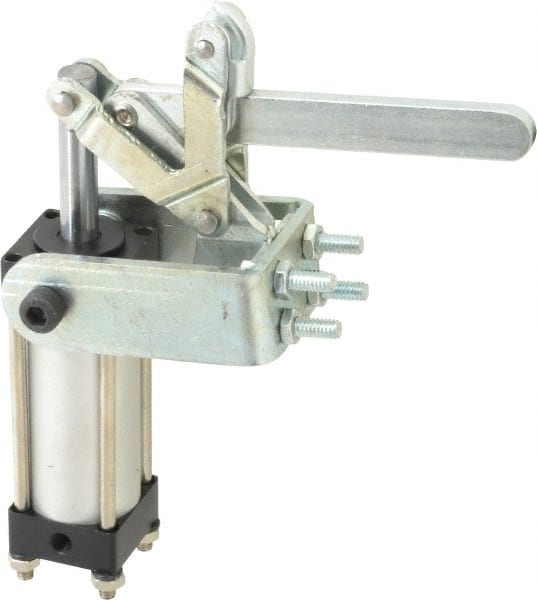

Gibraltar - 450 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPT Port, 95° Bar Opening, 2.76" Height Under Bar
Item #: 77863645
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (Lb.) | 450 |
| Height Under Bar (Decimal Inch) | 2.76 |
| Port Size | 1/8 NPT |
| Bar Opening (Degrees) | 95 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.9800 |
| Overall Closed Height (Decimal Inch) | 7.68 |
| Air Requirement (psi) | 20 to 130 |
| Mounting Hole Size (Decimal Inch) | 0.2800 |
| Bar Style | Solid |
| Includes | Magnetic Ring |
