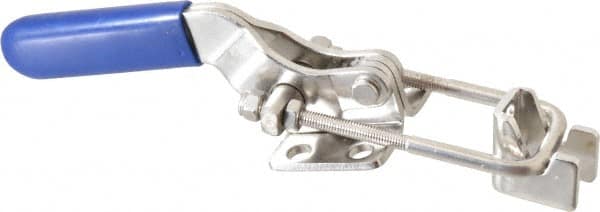

Gibraltar - 700 Lb Capacity, Horizontal, U Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 1-3/4" Drawing Movement, 5.97" OAL, Whale Tail Handle
Item #: 77863744
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with an in-line latching hook and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 7,500 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Horizontal |
| Bar Style | U-Hook |
| Load Capacity (Lb.) | 700 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Whale Tail |
| Overall Length (Decimal Inch) | 5.9700 |
| Overall Height (Decimal Inch) | 1.9600 |
| Drawing Movement (Decimal Inch) | 1.750 |
| Handle Color | Blue |
| Base Length (Decimal Inch) | 1.5600 |
| Base Width (Decimal Inch) | 1.7500 |
| Mounting Hole Diameter (Decimal Inch) | 0.2700 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7500 |
| Bar Width (Decimal Inch) | 1.0000 |
| Bar Thickness (Decimal Inch) | 0.1900 |
| Base to Center of Bar (Decimal Inch) | 0.6600 |
| Includes | Latch Plate; U-Hook Assembly |
