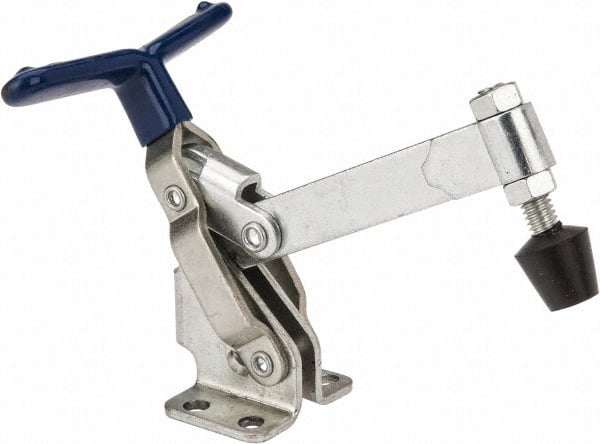

Gibraltar - 475 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 62° Handle Movement, 115° Bar Opening, Solid Bar, Flanged Base, Carbon Steel
Item #: 77864403
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Holding Capacity (N) | 2110.00 |
| Holding Capacity (Lb.) | 475.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.75 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Height Under Bar (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Height (Decimal Inch) | 4.3600 |
| Base Length (Decimal Inch) | 1.3800 |
| Base Width (Decimal Inch) | 1.7500 |
| Handle Style | T-Handle |
| Material | Carbon Steel |
| Handle Color | Blue |
| Mounting Hole Diameter (Decimal Inch) | 0.2800 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.1900 |
| Bar Opening (Degrees) | 115.00 |
| Handle Movement (Degrees) | 62.00 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length (Inch) | 2-1/4 |
| Bar Width (Decimal Inch) | 0.6300 |
| Bar Thickness (Decimal Inch) | 0.2500 |
| Handle Width (Decimal Inch) | 0.5000 |
| Includes | Bolt Retainer; Spindle |
