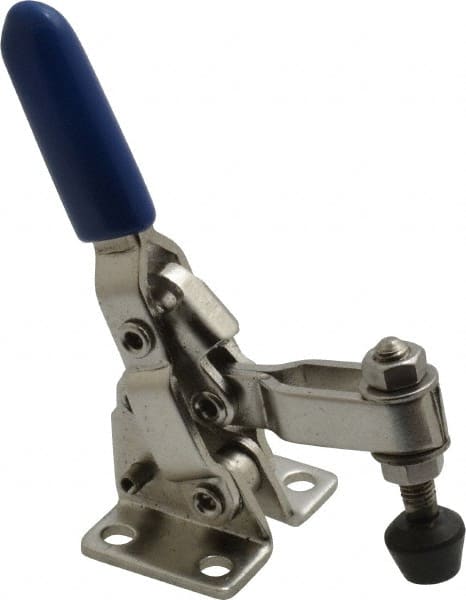

Gibraltar - 125 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 55° Handle Movement, 100° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 77864486
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 560.00 |
| Holding Capacity (Lb.) | 125.00 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.63 |
| Width Distance Between Mount Holes (mm) | 23.88 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.9400 |
| Height Under Bar (mm) | 16.00 |
| Height Under Bar (Decimal Inch) | 0.6300 |
| Overall Length (mm) | 51.82 |
| Overall Length (Decimal Inch) | 2.0400 |
| Overall Height (mm) | 78.23 |
| Overall Height (Decimal Inch) | 3.0800 |
| Base Length (mm) | 25.40 |
| Base Length (Decimal Inch) | 1.0000 |
| Base Width (mm) | 34.04 |
| Base Width (Decimal Inch) | 1.3400 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 4.32 |
| Mounting Hole Diameter (Decimal Inch) | 0.1700 |
| Front of Base To Tip Of Toggle Bar (mm) | 26.42 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.0400 |
| Bar Opening (Degrees) | 100.00 |
| Handle Movement (Degrees) | 55.00 |
| Maximum Mechanical Advantage | 6:1; 9:1 |
| Spindle Thread Size | M5x0.8 |
| Spindle Length (mm) | 29.00 |
| Spindle Travel (mm) | 18.54 |
| Spindle Travel (Decimal Inch) | 0.7300 |
| Bar Width (Decimal Inch) | 0.3100 |
| Bar Width (mm) | 7.87 |
| Bar Thickness (Decimal Inch) | 0.3400 |
| Handle Width (Decimal Inch) | 0.5000 |
| Includes | (2) Nuts; Hex Head Spindle |
