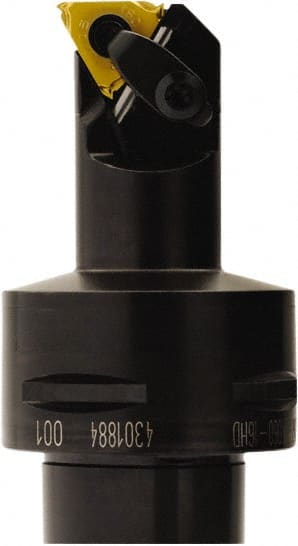

Seco - Internal Thread, Right Hand Cut, 63mm Shank Width x 63mm Shank Height Indexable Threading Toolholder - 16NR Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 77889376
Brand: Seco
Model #: 30453
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 63.00 |
| Shank Width/Diameter (Decimal Inch) | 2.4803 |
| Shank Height (mm) | 63.00 |
| Shank Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 16NR |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 16.30 |
| Center to Cutting Edge (Decimal Inch) | 0.6417 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
