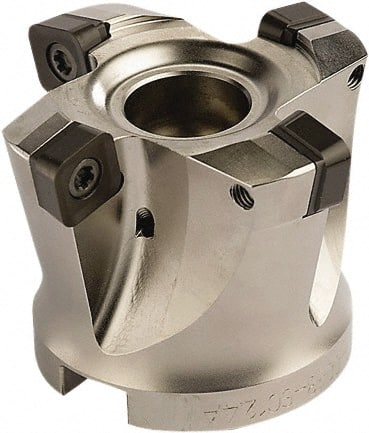

Seco - 4 Inserts, 2.0472" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 0.8661" Arbor Hole Diam, 0.4094" Keyway Width, 1.5748" High, SCE.. 1206.. Inserts
Item #: 77889541
Brand: Seco
Model #: 33567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | SCE.. 1206.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10500 |
| Maximum Body Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Yes |
| Complete Insert Compatibility | SCET 120630T-M14; SCET 120630T-MD16 |
| Keyway Width (Decimal Inch) | 0.4094 |
