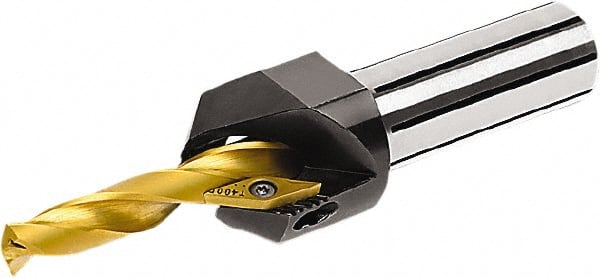

Seco - 4 to 4.75mm Diam, Straight Shank, 12mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - SD200 Insert, 66mm OAL
Item #: 77890515
Brand: Seco
Model #: 24462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 4.75 |
| Maximum Drill Diameter (Decimal Inch) | 0.1870 |
| Minimum Drill Diameter (mm) | 4.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.1575 |
| Body Shank Diameter (mm) | 12.00 |
| Body Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | SD200 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 21.00 |
| Body Diameter (Decimal Inch) | 0.8268 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 41.00 |
| Shank Length (Decimal Inch) | 1.6142 |
| Through Coolant | NonThrough Coolant |
| Series | Seco Feedmax |
| Includes | Cassette; Insert Key; Locking Screw; Module Key; Stop Screw |
