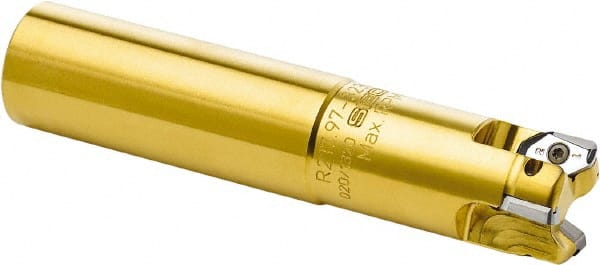

Seco - 25mm Cutting Diam, 25mm Shank Diam, 7.5mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, XP.. 12 Insert, R217.97 Toolholder, Through Coolant
Item #: 77890531
Brand: Seco
Model #: 19542
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | XP.. 12 |
| Toolholder Style | R217.97 |
| Overall Length (Decimal Inch) | 5.9060 |
| Insert Diameter (mm) | 10.07 |
| Insert Diameter (Decimal Inch) | 0.3965 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 25.00 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Shank Length (mm) | 95.00 |
| Shank Length (Decimal Inch) | 3.7402 |
| Maximum RPM | 40000 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
