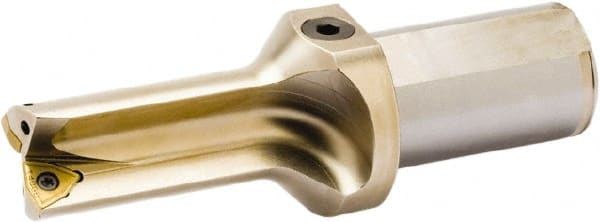

Seco - 30mm Max Drill Depth, 2xD, 15mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 77892081
Brand: Seco
Model #: 35701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (mm) | 15.00 |
| Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Depth (mm) | 30.00 |
| Maximum Drill Depth (Decimal Inch) | 1.1811 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 18.00 |
| Overall Length/Projection (mm) | 121.00 |
| Overall Length/Projection (Decimal Inch) | 4.7638 |
| Insert Compatibility (Outside or Peripheral) | WCMX 030208.. |
| Insert Compatibility | WCMX 030208-86 |
| Flute Length (mm) | 35.00 |
| Flute Length (Decimal Inch) | 1.3780 |
| Body Length (Decimal Inch) | 2.5591 |
| Body Length (mm) | 65.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 45.00 |
| Collar Diameter (Decimal Inch) | 1.7717 |
| Series | PerfoMAX |
