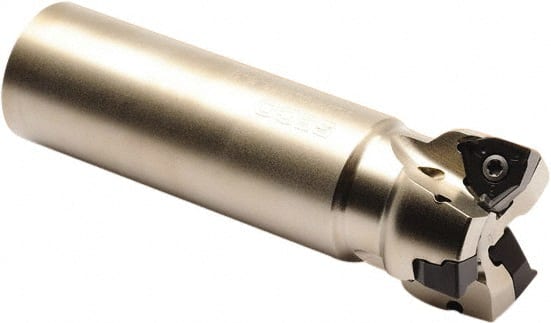

Seco - 32mm Cut Diam, 4mm Max Depth of Cut, 32mm Shank Diam, 195mm OAL, Indexable Square Shoulder End Mill - XNEX 04 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Square 6
Item #: 77892727
Brand: Seco
Model #: 67830
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 195.00 |
| Overall Length/Projection (Decimal Inch) | 7.6772 |
| Lead Angle | 90 |
| Series | Square 6 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Weldon Flat | No |
| Insert Compatibility | XNEX 04 |
| Shank Length (Decimal Inch) | 6.4567 |
| Shank Length (mm) | 164.00 |
| Maximum RPM | 23200 |
