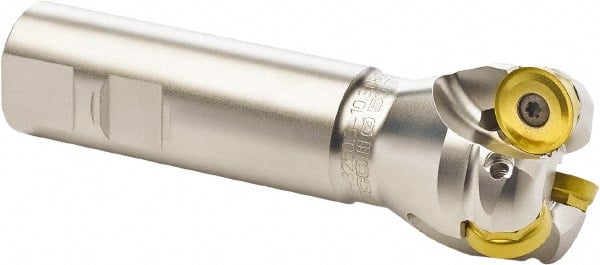

Seco - 50mm Cutting Diam, 32mm Shank Diam, 10mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RP.. 2006 Insert, R217.29 Toolholder
Item #: 77893824
Brand: Seco
Model #: 04707
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.. 2006 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 5.5120 |
| Insert Diameter (mm) | 20.00 |
| Insert Diameter (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Minimum Cutting Diameter (mm) | 30.00 |
| Shank Length (mm) | 87.00 |
| Shank Length (Decimal Inch) | 3.4252 |
| Maximum RPM | 6500 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1811 |
