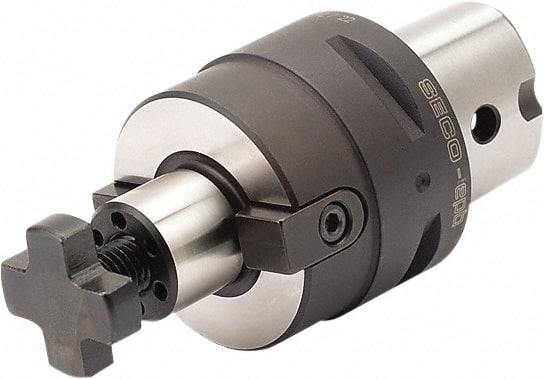

Seco - C6 Modular Connection 16mm Pilot Diam Shell Mill Holder - 35mm Flange to Nose End Projection, 38mm Nose Diam, Through-Spindle Coolant
Item #: 77896553
Brand: Seco
Model #: 27019
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Pilot Diameter (mm) | 16.00 |
| Pilot Diameter (Decimal Inch) | 0.6299 |
| Projection Flange to Nose End (mm) | 35.00 |
| Projection Flange to Nose End (Decimal Inch) | 1.3780 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 38.00 |
| Nose Diameter (Decimal Inch) | 1.4961 |
| Coolant Type | Through-Spindle |
