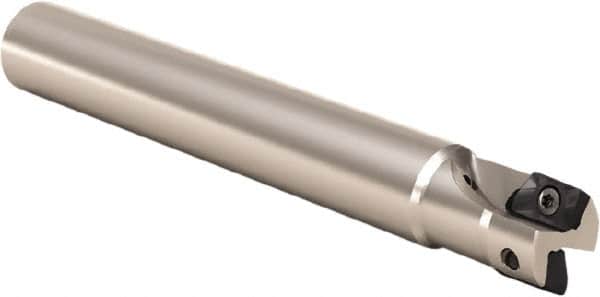

Seco - 32mm Cut Diam, 11mm Max Depth of Cut, 30mm Shank Diam, 195mm OAL, Indexable Square Shoulder End Mill - XO.. 1204 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 77897239
Brand: Seco
Model #: 51193
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 30.00 |
| Shank Diameter (Decimal Inch) | 1.1811 |
| Overall Length/Projection (mm) | 195.00 |
| Overall Length/Projection (Decimal Inch) | 7.6772 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1204 |
| Shank Length (Decimal Inch) | 6.1024 |
| Shank Length (mm) | 155.00 |
| Maximum RPM | 18400 |
