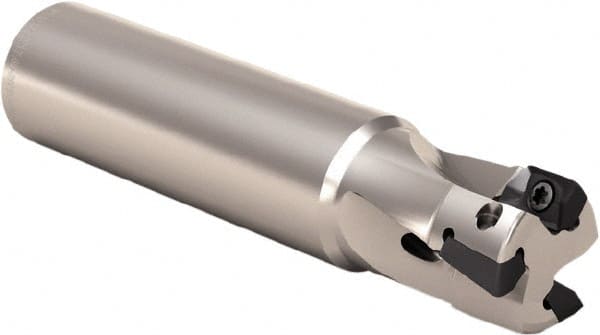

Seco - 25mm Cut Diam, 8mm Max Depth of Cut, 25mm Shank Diam, 101mm OAL, Indexable Square Shoulder End Mill - XO.. 0903.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Micro Turbo
Item #: 77897965
Brand: Seco
Model #: 53193
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 101.00 |
| Overall Length/Projection (Decimal Inch) | 3.9764 |
| Lead Angle | 90 |
| Series | Micro Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 34.00 |
| Head Length (Decimal Inch) | 1.3386 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.. 0903.. |
| Shank Length (Decimal Inch) | 2.6378 |
| Shank Length (mm) | 67.00 |
| Maximum RPM | 26000 |
