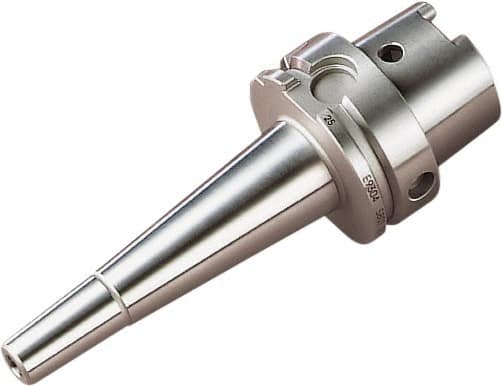

Seco - 16mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 7.48" Projection, 0.945" Nose Diam, 1.496" Clamping Depth, 38,000 RPM, Through Coolant
Item #: 77897973
Brand: Seco
Model #: 06143
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Projection (Decimal Inch) | 7.4800 |
| Nose Diameter (Decimal Inch) | 0.9450 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.4960 |
| Overall Length (Decimal Inch) | 8.7400 |
| Balanced to (RPM) | 38000 |
