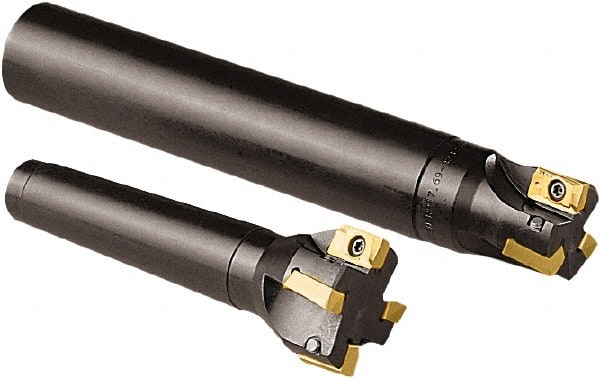

Seco - 32mm Cut Diam, 15mm Max Depth of Cut, 25mm Shank Diam, 111mm OAL, Indexable Square Shoulder End Mill - AP.. 1604.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 77898609
Brand: Seco
Model #: 34528
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 111.00 |
| Overall Length/Projection (Decimal Inch) | 4.3701 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Weldon Flat | Yes |
| Insert Compatibility | AP.. 1604.. |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Maximum RPM | 16300 |
