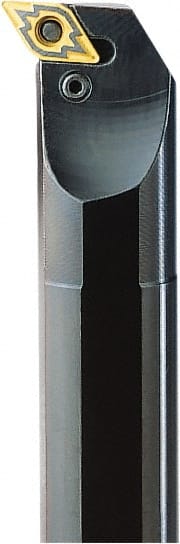

Seco - 48mm Min Bore Diam, 400mm OAL, 40mm Shank Diam, S-PDUN Indexable Boring Bar - 55mm Max Bore Depth, DN.. 1506.. Insert, Pin Lock Assembly Holding Method
Item #: 77899227
Brand: Seco
Model #: 00292
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PDUN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 48.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.8898 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 400.00 |
| Overall Length (Decimal Inch) | 15.7480 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | DN.. 1506.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DNGA 150604S-01525-L1-U; DNGA 150604S-L0-B; DNGA 150608E25-L1-U; DNGA 150608S-01525-L1-B; DNGA 150608S-01525-L1-U; DNGA 150608S-02020-L1-B; DNGA 150608S-L0-B; DNGA 150612S-01525-L1-B; DNGA 150612S-01525-L1-U; DNGA 150612S-L1; DNGM 150608-MF1; DNMA 150608 |
| Toolholder Material | Steel |
