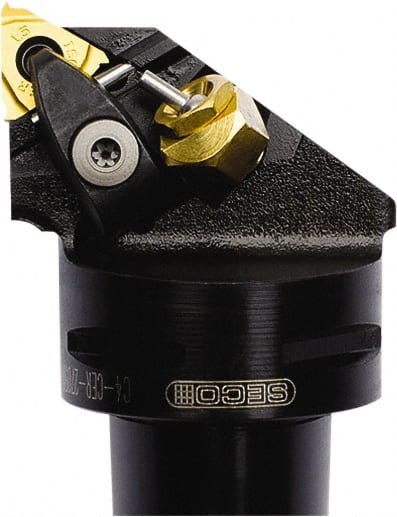

Seco - External Thread, Left Hand Cut, 62.99mm Shank Width x 62.99mm Shank Height Indexable Threading Toolholder - 27EL Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 77899821
Brand: Seco
Model #: 21764
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 62.99 |
| Shank Width/Diameter (Decimal Inch) | 2.4800 |
| Shank Height (mm) | 62.99 |
| Shank Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | 27EL |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 45.01 |
| Center to Cutting Edge (Decimal Inch) | 1.7720 |
| Head Length (mm) | 65.02 |
| Head Length (Decimal Inch) | 2.5600 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
