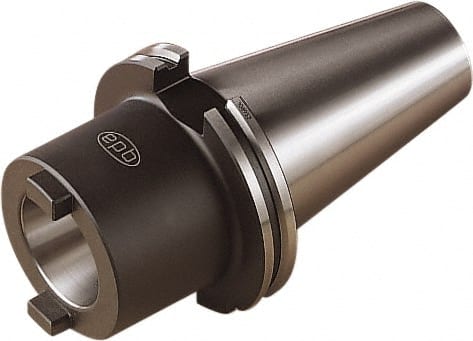

Seco - DIN69871-50 Outside Taper, BT50/CAT50/DIN69871-50 Inside Taper, DIN69871 to BT/CAT/DIN69871 Taper Adapter - 120mm Projection, 98mm Nose Diam, 234.2mm OAL
Item #: 77899888
Brand: Seco
Model #: 11415
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to BT/CAT/DIN69871 |
| Outside Taper Size | DIN69871-50 |
| Inside Taper Size | BT50/CAT50/DIN69871-50 |
| Projection (Decimal Inch) | 4.7244 |
| Projection (mm) | 120.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 3.8583 |
| Nose Diameter (mm) | 98.00 |
| Overall Length (mm) | 234.20 |
| Overall Length (Decimal Inch) | 9.2205 |
| Drawbar Thread Size | M24 |
