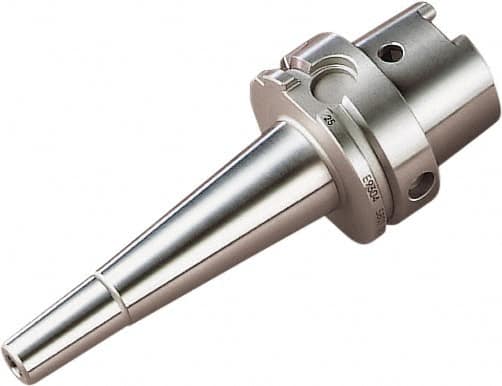

Seco - 6mm Hole Diam, HSK40A Taper Shank Shrink Fit Tool Holder & Adapter - 2.755" Projection, 0.472" Nose Diam, 1.023" Clamping Depth, 45,000 RPM, Through Coolant
Item #: 77900124
Brand: Seco
Model #: 05711
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK40A |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 6.00 |
| Projection (Decimal Inch) | 2.7550 |
| Nose Diameter (Decimal Inch) | 0.4720 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.0230 |
| Overall Length (Decimal Inch) | 3.5430 |
| Balanced to (RPM) | 45000 |
