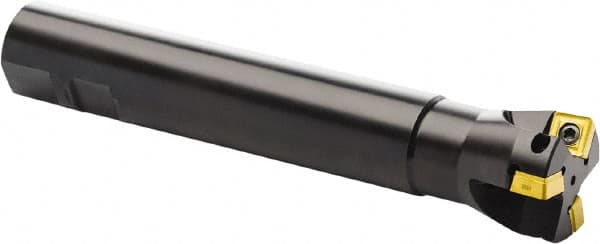

Seco - 87° Lead Angle, 32mm Min Cut Diam, 11mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SC.. 1206.. Insert Style, 200mm Overall Length, Through Coolant, Straight Shank
Item #: 77900819
Brand: Seco
Model #: 97786
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | SC.. 1206.. |
| Toolholder Style | R217.79 |
| Overall Length/Projection (Decimal Inch) | 7.8740 |
| Overall Length Projection (mm) | 200.0 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 150.00 |
| Shank Length (Decimal Inch) | 5.9055 |
| Weldon Flat | Yes |
| Through Coolant | Yes |
| Maximum RPM | 12100 |
