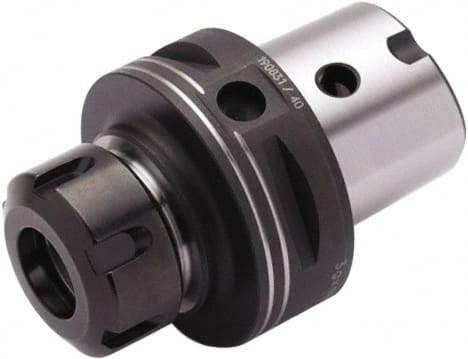

Seco - 0.02" to 0.394" Capacity, 1.772" Projection, Modular Connection, ER16 Collet Chuck - 0.0004" TIR, Through-Spindle
Item #: 77901221
Brand: Seco
Model #: 65885
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Modular Connection Size | C3 |
| Projection (Decimal Inch) | 1.7720 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
