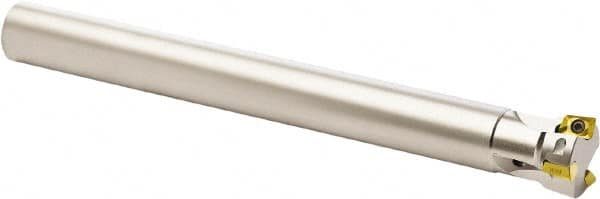

Seco - 94° Lead Angle, 25mm Min Cut Diam, 7mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XO.. 1204.. Insert Style, 200mm Overall Length, Through Coolant, Straight Shank
Item #: 77901346
Brand: Seco
Model #: 63982
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shank Type | Cylindrical Shank |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Number of Cutter Inserts | 2 |
| Insert Style | XO.. 1204.. |
| Toolholder Style | R217.79 |
| Overall Length/Projection (Decimal Inch) | 7.8740 |
| Overall Length Projection (mm) | 200.0 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Maximum RPM | 20800 |
